Linx CSL30

Largest marking area in its class

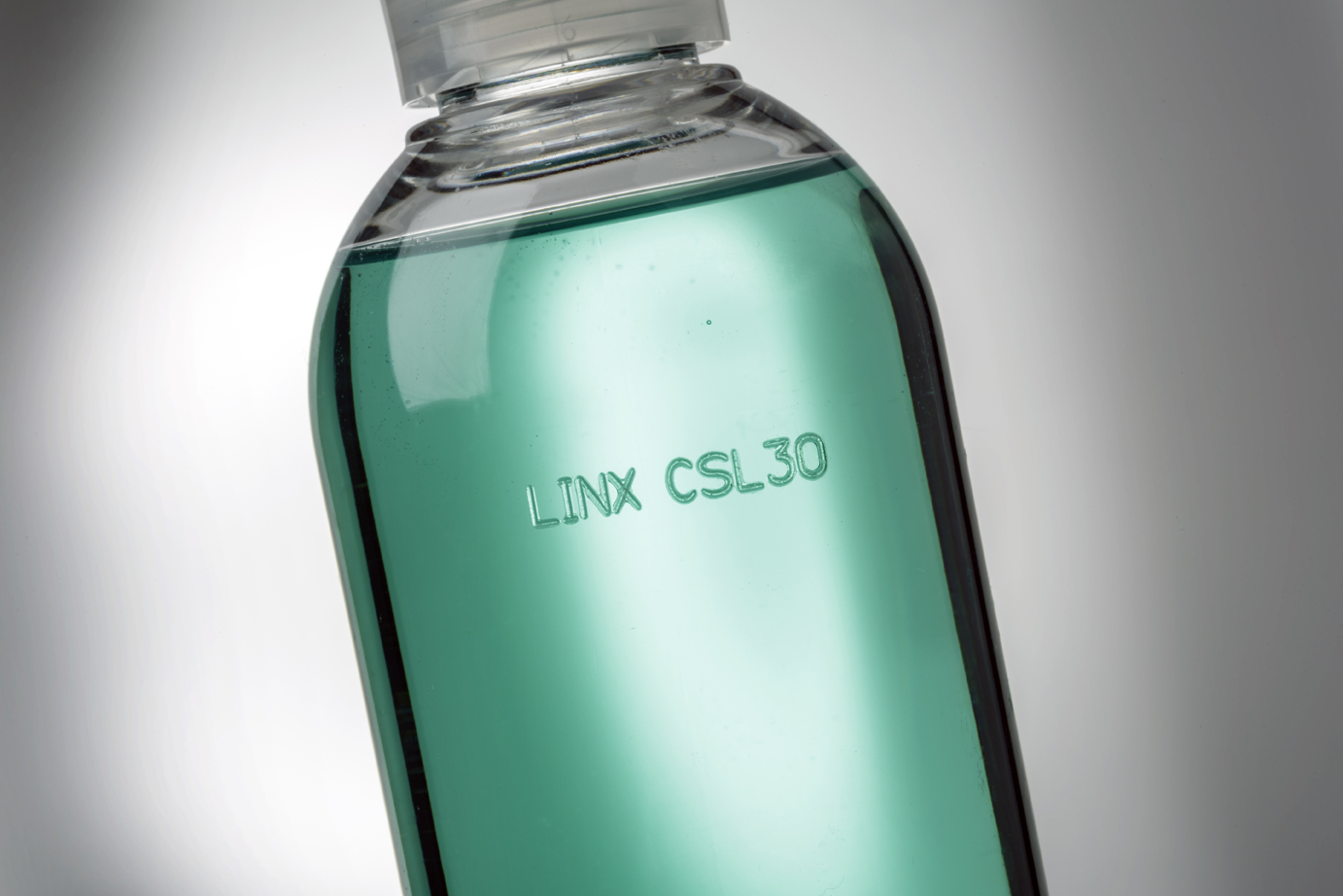

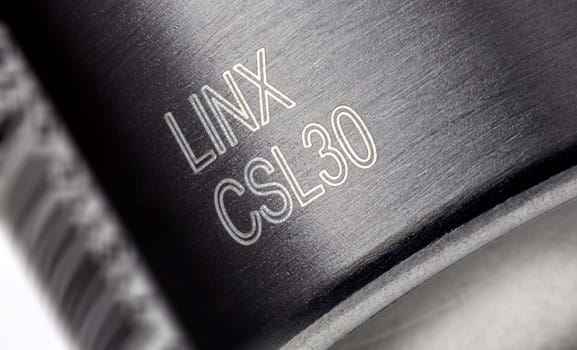

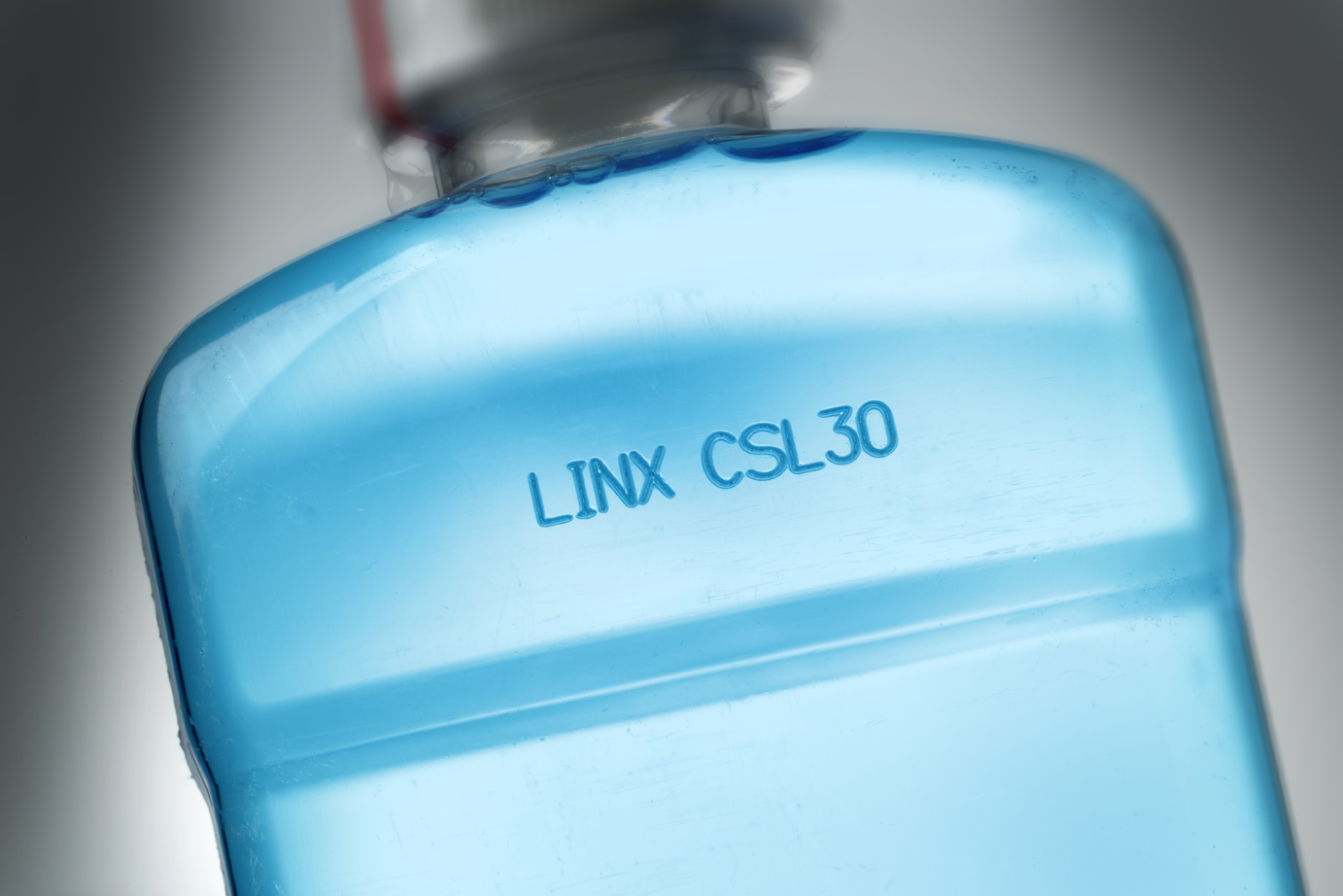

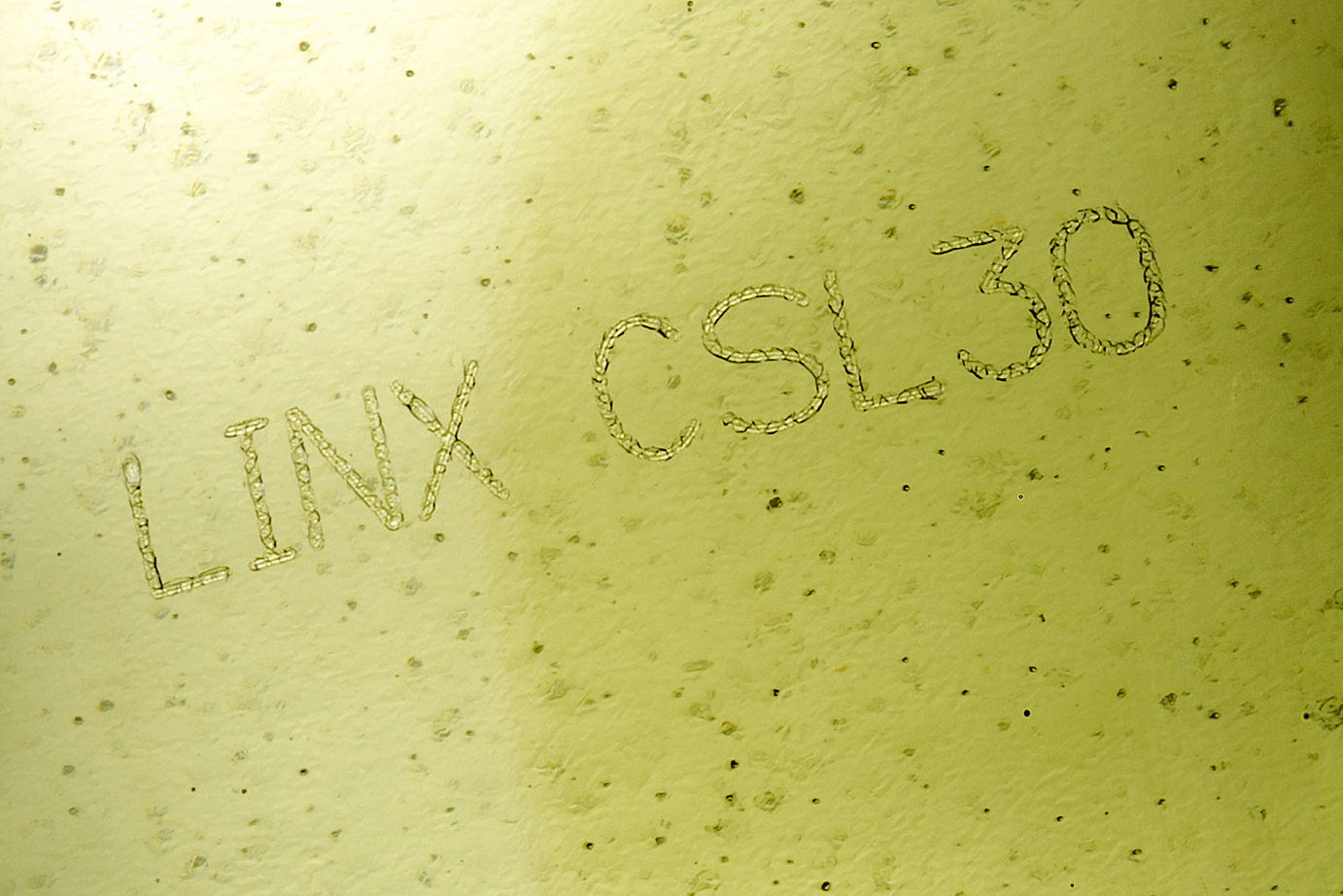

The Linx CSL30 laser coder produces sharp codes on fast lines, and even on hard to mark materials such as glass and rubber. It has been designed to keep up with your coding requirements as they change - line speed, code complexity, or material types -  with no additional investment needed.

Schedule a Demo

Key Benefits

Easy to Use

Easy line integration – detachable marking head with quick disconnect cables

Multiple beam delivery options allow for coding in any orientation

Easy message creation and management of printing parameters with the large color LinxVision® Touch Screen, and LinxVision software

Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only

Meet production targets

Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market

Service intervals typically twice that of the industry standard

A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos - on fast lines with no compromise on code quality

No expensive factory air for cooling

Print In More Applications

Crisp, clear coding on glass, even at high line speeds, with VisiCode®, a unique set of parameters

Flip, mirror, or curve text – easily code onto difficult shapes

Over 20,000 different configurations to economically meet your coding requirements

Wide web applications for large area coding or multiple lines of products

Key Benefits with Linx CSL30

CO2 scribing laser coder

Line speed - up to 2952.76 ft/min (code and substrate dependent)

Maximum laser output power at lens – 30 W

Lens and head options (range):

Spot Size 0.0114 cm – 0.062"

Marking Field 1.14" x 1.42" to 17.32" x 23.6614" (wide web application)

Mark distance 2.64 in – 22.68 in

Number of lines of text - only limited by character size and marking field size

Character height - up to marking field size

Print rotation – 0-360°

Marking head rotation – 0-360°

Code options: date, time, static text, variable text, serial numbers, alphanumeric, shift codes, increment/decrement (batch count), ID Matrix 2D codes, barcodes, QR codes, graphics and logos, Julian dates, custom date and time formats

Laser tube wavelengths - 10.6 µm, 9.3 µm, or 10.2 µm

Marking head options – 4 marking heads available as standard

Versatile Beam delivery options for easy integration into your production line:

Down (90°) or Straight (0°) Shooter

360° Beam Extension Unit (BEU)

Variable length Beam Turning Unit (BTU)

IP rating - IP54 as standard, IP65 option

Air cooled - not factory air

Large volume gas tube can last in excess of 45,000* hours

Laser tube warranty – 2 years
