Linx laser marking machines and coding systems are ideal for high print volumes - such as food, drink and pharmaceutical products - while providing permanent traceability.Improve productivity and keep in control of your Linx CSL laser marking and coding systems with Linx PrinterNet, remote connectivity enabling you to monitor and control your printer anywhere, anytime.
Linx laser coders offer any-orientation coding alongside full touch-screen control, low maintenance costs and zero consumables - providing an affordable and effective solution compared to other products on the market.
Laser

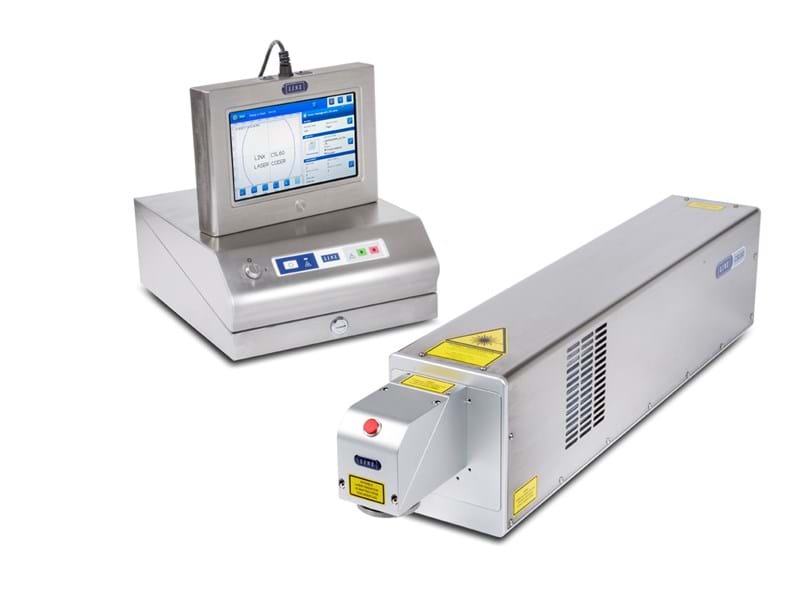

The Linx CSL30 laser coder produces sharp codes on fast lines, and even on hard to mark materials such as glass and rubber. It has been designed to keep up with your coding requirements as they change - line speed, code complexity, or material types - with no additional investment needed.
CO2 scribing laser coder
Line speed - up to 2952.76 ft/min (code and substrate dependent)
Maximum laser output power at lens – 30 W
Spot Size 0.0114 cm – 0.062"
Marking Field 1.14" x 1.42" to 17.32" x 23.6614" (wide web application)
Mark distance 2.64 in – 22.68 in
Laser

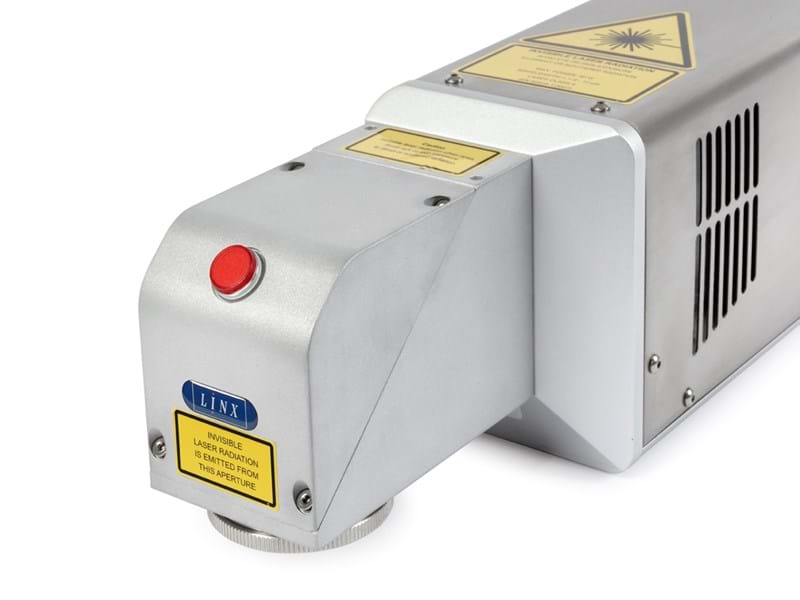

The Linx CSL10 is a high specification, 10 W CO2 scribing laser coder. Designed to be economical yet versatile, it is suitable for a wide range of laser marking applications. Produces complex variable codes and dynamic messages, even on high speed lines for quality coding on a wide range of materials. With a detachable marking head and connectors for easy installation.
CO2 scribing laser coder
Line speed - up to 2952.76 ft/min
Maximum laser output power at lens - 10W
Spot Size 0.0035 " – 0.044"
Laser
The Linx CSL60 Laser System marks complex codes at a high resolution onto high-speed lines. The 60 W laser power combined with a powerful processor allows coding onto hard to mark materials such as glass and rubber. Full system IP65 rating makes it a reliable coding solution for harsh production environments such as beverage, automotive, or extrusion.
60 W CO2 scribing laser coder
Line speed – code up to 2100 characters/second; 70,000 bottles/hour; 2952.76ft/min
Maximum code height - 23.66"
Marking field size – up to 17.3" x 23.66"
Laser

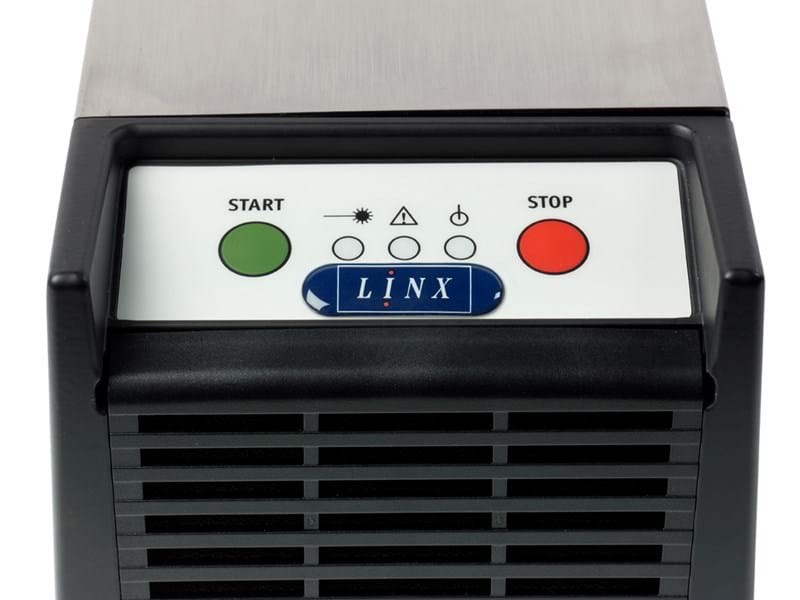

The Linx SL1 is a compact, cost effective coder designed to fit easily into production environments where space is constrained. An ultra-fast mirror system enables faster coding than other lasers in its class, while using much less laser energy but delivering 20% more power. No routine servicing or consumables mean the lifetime costs of the Linx SL1 laser are favorable compared to other types of printer, with no variable costs.
Affordable laser coding - no consumables or routine servicing
Designed to deliver enhanced reliability
Longer operating lifetime than equivalent lasers
Mix text, logos and machine-readable codes in a single message
