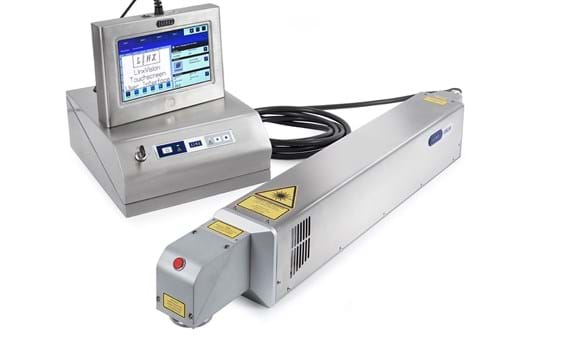

Linx CSL60

Complex coding applications on high speed lines

The Linx CSL60 Laser System marks complex codes at a high resolution onto high-speed lines. The 60 W laser power combined with a powerful processor allows coding onto hard to mark materials such as glass and rubber. Full system IP65 rating makes it a reliable coding solution for harsh production environments such as beverage, automotive, or extrusion.

Schedule a Demo

Key Benefits

Easy to Use

Easy message creation and management of printing parameters with the large color LinxVision® Touch Screen, and LinxVision software

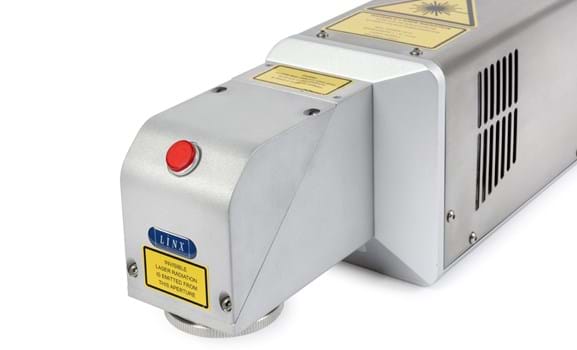

Easy line integration – detachable marking head with quick disconnect cables

Multiple beam delivery options allow for coding in any orientation

Reduce your coding errors and meet coding regulations with password controls that can restrict access to qualified personnel only

Meet production targets

A powerful, four-core processor allows printing of complex messages – including 2d barcodes, QR codes and logos - on fast lines with no compromise on code quality

Code up to 70,000 bottles per hour*

Reduce running costs and delays with 45,000* hour tube life – one of the longest on the market

Service intervals typically twice that of the industry standard

No expensive factory air for cooling

Print In More Applications

High power 60 W laser tube for coding onto hard materials such as glass, rubber, and HDPE

Over 20,000 different configurations to economically meet your coding requirements

Wide web applications for large area coding or multiple lines of products

Crisp, clear coding onto cold glass bottling lines, at high speed, with VisiCode®, a unique set of parameters

Flip, mirror or curve text – easily code onto difficult shapes

Key Benefits with Linx CSL60

60 W CO2 scribing laser coder

Line speed – code up to 2100 characters/second; 70,000 bottles/hour; 2952.76ft/min

Maximum code height - 23.66"

Marking field size – up to 17.3" x 23.66"

Laser wavelength - 9.3 μm or 10.2 μm or 10.6 μm

Laser tube warranty – 2 years

Spot size – from 0.004 in to .065 in

Print rotation – up to 360°

Marking head rotation – up to 360°

Code options - Date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, custom date and time formats, 2D codes including DotCode.

IP rating – full system IP65 rated as option; IP54 as standard.

Air cooled for both IP54 and IP65 variants.
