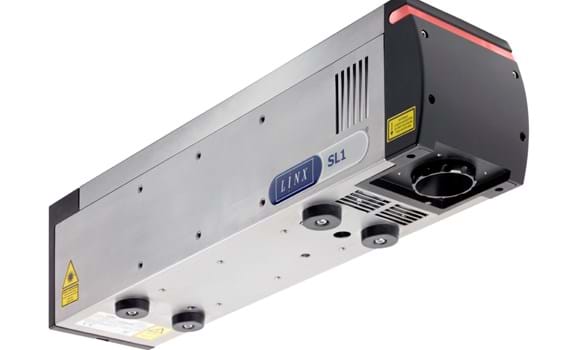

The Linx SL1 is a compact, cost effective coder designed to fit easily into production environments where space is constrained. An ultra-fast mirror system enables faster coding than other lasers in its class, while using much less laser energy but delivering 20% more power. No routine servicing or consumables mean the lifetime costs of the Linx SL1 laser are favorable compared to other types of printer, with no variable costs.
Schedule a Demo
Ethernet (TCP/IP, 100Mbit LAN), RS232, digital I/Os
Inputs for encoders and product detector triggers
I/Os for the signals, start, stop, error, job select (32 different templates), trigger, encoder, ready to mark, marking, shutter closed, and machine/user interlocks
Graphics-orientated user interface for intuitive and fast preparation of complete code templates on PCs
Sealed CO2 laser, power class 10W
Laser wavelength - 6 μm, 4 focusing lenses
Laser class - 4 (according to IEC 60825-1:2007)
Languages - English, French, German, Dutch, Spanish, Portuguese, Chinese
Options - Beam shield, Exhaust unit, Product detector, Encoder, Stand, dual interlock safety module, Controller
Standard - Start and stop keys with safety switch
LED indicators for status, laser emission, error
Electrical requirements 100 – 120V, 200 – 240V, Autorange 1PH, 350 VA, 50/60 Hz
Standard fonts (Windows® TrueType®/TTF; PostScript®/PFA, PFB; OpenType®/OTF)
Individual fonts such as high-speed or OCR
Machine-readable codes: Bar codes: BC25,BC25I, BC39, BC93, EAN 8, EAN 13, BC128, EAN 128,
Postnet, SCC14, UPC_A, UPC_E, RSS14TR, RSS14ST, RSS14STO, RSSLIM, RSSEXP
Data matrix 2D codes: ECCOOO, ECC050, ECC080, ECC100, ECC140, ECC200, ECC PLAIN, QR
Graphics/graphic components, logos, symbols, etc. (the most common file formats such as DXF, JPG, AI can be imported)
Linear, circular, angular text marking; rotation, reflection, expansion, compression of marking contents
Affordable laser coding - no consumables or routine servicing
Designed to deliver enhanced reliability
Longer operating lifetime than equivalent lasers
Mix text, logos and machine-readable codes in a single message
Wide range of fonts to compliment packaging design and branding
Easy installation into tight production lines
Supports 2D code standards including QR and dot matrix codes
Wider range of marking fields than equivalent laser coders
