Linx 8920 Series

Designed to make operation and efficiency easier than ever.

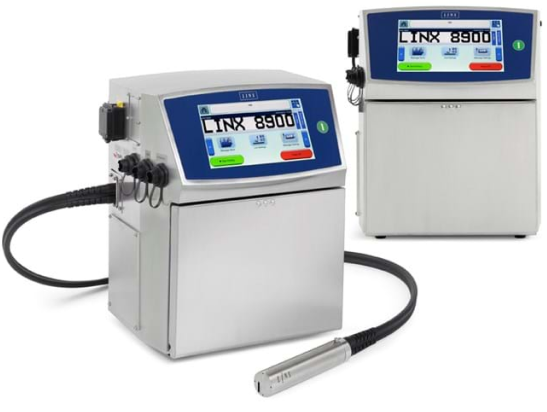

Spend more time coding and increasing your output with a Linx 8900 CIJ printer – the easiest to use Linx printer on the market.

Improve productivity and keep in control of your printer with Linx PrinterNet, remote connectivity enabling you to monitor and control your printer anywhere, anytime.

The Smartphone-inspired screen makes message selection, creation and printer operation faster than ever. Self-service and minimal intervention increases your production uptime. Print onto both primary and secondary packaging with one printer.

Schedule a Demo

Key Benefits with Linx 8900 Series

Remote connectivity to access, monitor and control Linx 8900 printers and receive remote technical support with Linx PrinterNet, a secure, cloud-based service

Flexible coder prints up to 5 lines of text, numbers, barcodes and logos

Simple self-service with up to two years between services - no engineer required

Quick-change fluid cartridges

IP55-rated stainless steel enclosure as standard with IP65 option

Real-time output measurement and line stoppage logs

Range of ink types and colours for both consumer and industrial marking

Date freezing for batch printing – ideal for 24/7 operations

Variable character spacing improves vision system recognition

Prompts to ensure correct date and text is added to message

Simple to insert text or logos into messages

Configurations

Linx 8920

4-line coding, includes carton code printing up to 20mm,  and fast line speed of up to 7.28m/s as standard

Linx 8940

5-line coder designed for the most challenging coding applications, with  IP65 rating for reliable operation & speeds up to 9.10m/s.

Technical Specifications

Printing capability

Up to 5 lines of text, symbols, numbers, barcodes
Data Matrix and QR codes

Character height from 1.8mm to 20mm

Maximum print speeds of up to 9.10m/s

Carton coding option with character height up to 20mm

Rotated character (‘tower’) printing

Printing capability

Screen with icons, drag-and-drop field positioning, and zoom function for longer messages

Custom date and time editor to create different date formats as required

USB port for copy and back-up of message and printer settings, and for easy transfer of messages between printers, and downloading of
output and line stoppage logs

Message store of up to 1000

Real-time output measurement on screen

Output and line stoppage logs
Screen saver shows real-time on/off target indication

Customisable top screen for most frequently used features

Printing capability

10” colour touch screen

Stainless steel enclosure

IP55 (washdown) as standard

2m conduit as standard, with 4m and 6m options

Weight 24kg

No factory air required

Ethernet port, with optional RS232 and Parallel I/O ports for easier integration with line equipment
