Laser coder

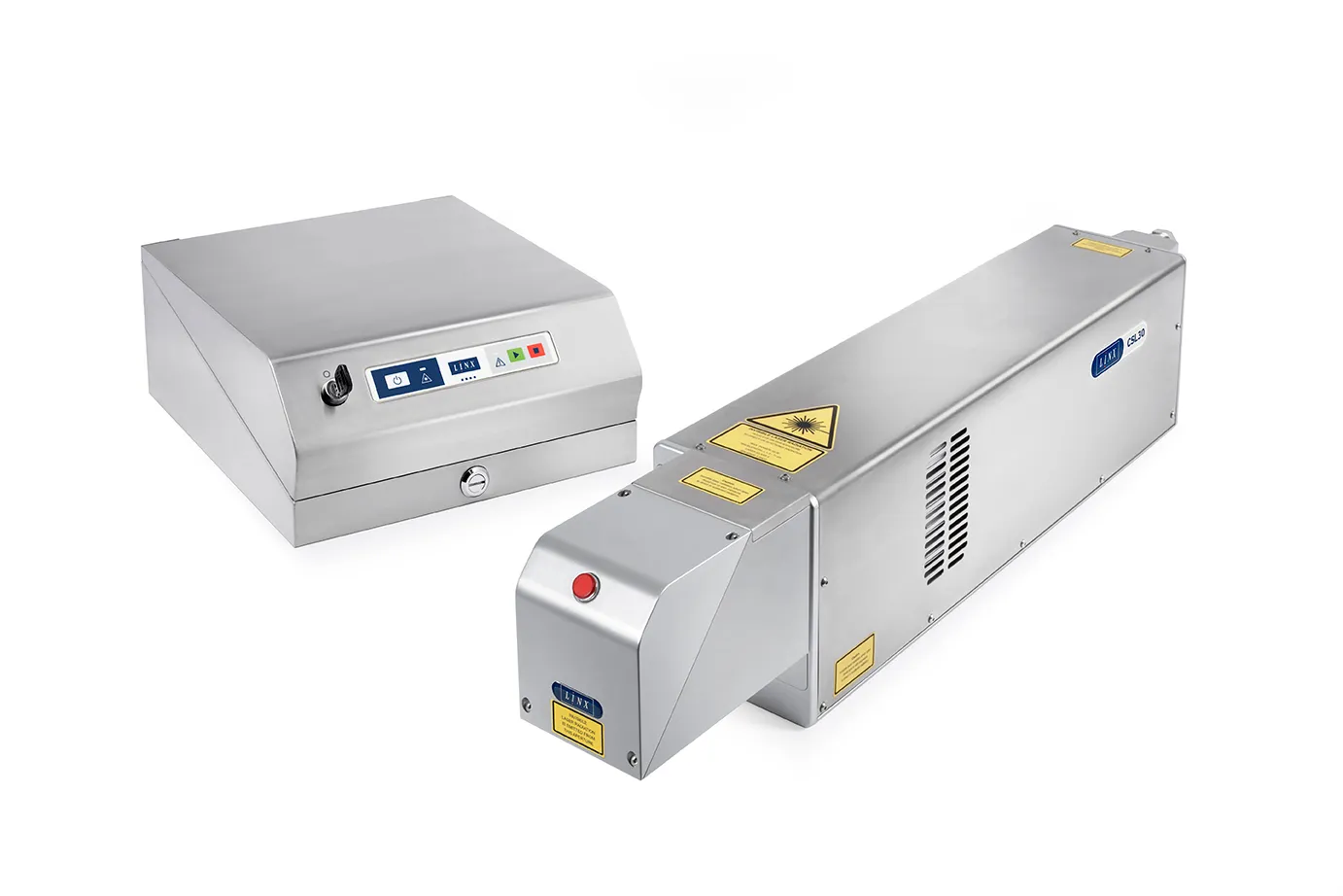

Linx CSL30

The largest marking area in its class.

The Linx CSL30 produces sharp codes on fast lines, and even on hard-to-mark materials such as glass and rubber. It keeps up as your requirements change — line speed, code complexity or material type — with no additional investment.

Request a quote Book a demo

Key benefits

Built to perform on your line.

Easy to use

Detachable marking head with quick-disconnect cables
Multiple beam-delivery options for coding in any orientation
Large colour LinxVision® touch screen and software
Password controls restrict access to qualified staff

Meet production targets

45,000-hour tube life — one of the longest on the market
Service intervals typically twice the industry standard
Four-core processor prints complex 2D, QR and logos at speed
No expensive factory air needed for cooling

Print in more applications

Crisp coding on glass at speed with VisiCode®
Flip, mirror or curve text onto difficult shapes
Over 20,000 configurations to match your line
Simplified focus technology for fast changeovers

Technical specifications

The numbers that matter.

CO₂ scribing laser coder
Line speed – up to 900 m/min (code & substrate dependent)
Maximum laser output – 30 W at lens
Spot size – 0.114 mm to 1.6 mm
Marking field – 29×36 mm up to 440×601 mm (wide web)
Mark distance – 67 mm to 576 mm
Print & head rotation – 0–360°
Codes – dates, text, serials, 2D Data Matrix, QR, barcodes, logos, Julian
IP54 standard (IP65 option), air cooled
Tube life up to 45,000 hours · 2-year tube warranty

Applications

Where it fits best.

Glass Rubber Cartons Extrusion Wide web High-speed lines

Compare the range.

Laser coder

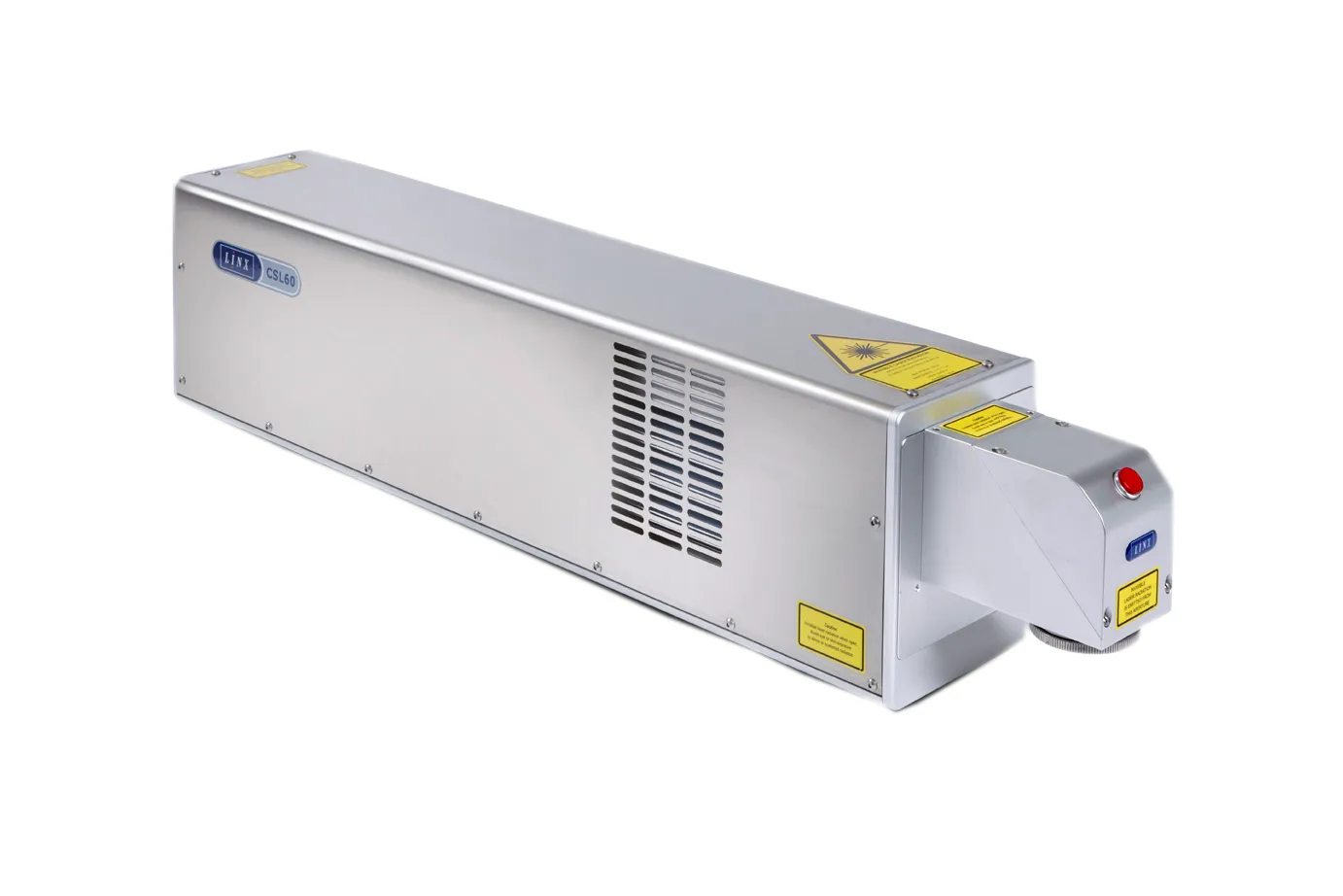

Linx CSL60

View full details

UV laser coder

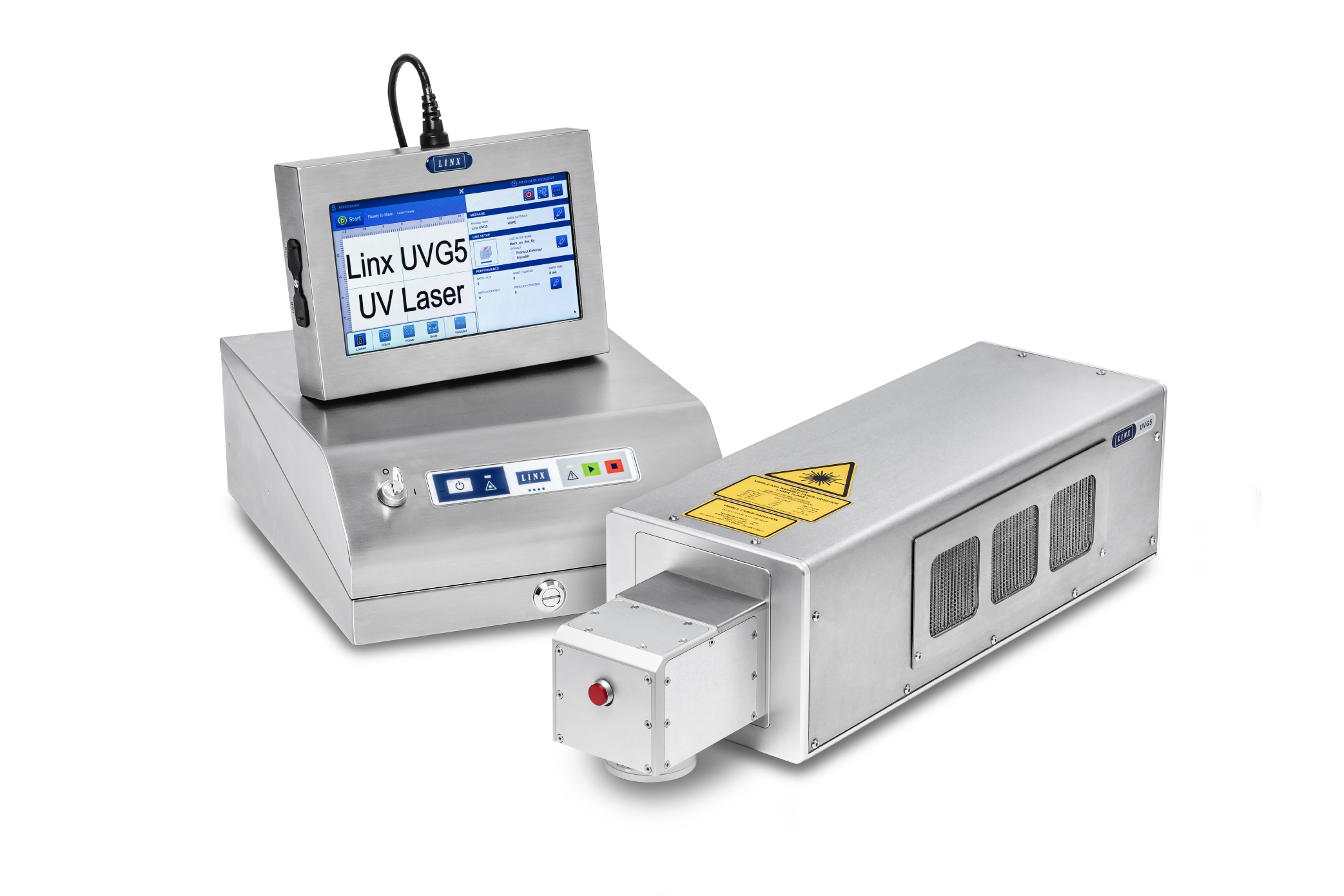

Linx UVG5

View full details

Want the Linx CSL30 on your line?

Send us your product and substrate — we'll quote it, configure it and run a sample mark.

Request a quote WhatsApp
