UV laser coder

Linx UVG5

Permanent UV marking that protects the substrate.

The Linx UVG5 UV laser coder is ideal for permanent marking on flexible films and rigid plastics — without consumables and while maintaining substrate integrity. UV "cold processing" minimises thermal stress, delivering high-contrast, highly readable codes with simple integration into existing lines.

Request a quote Book a demo

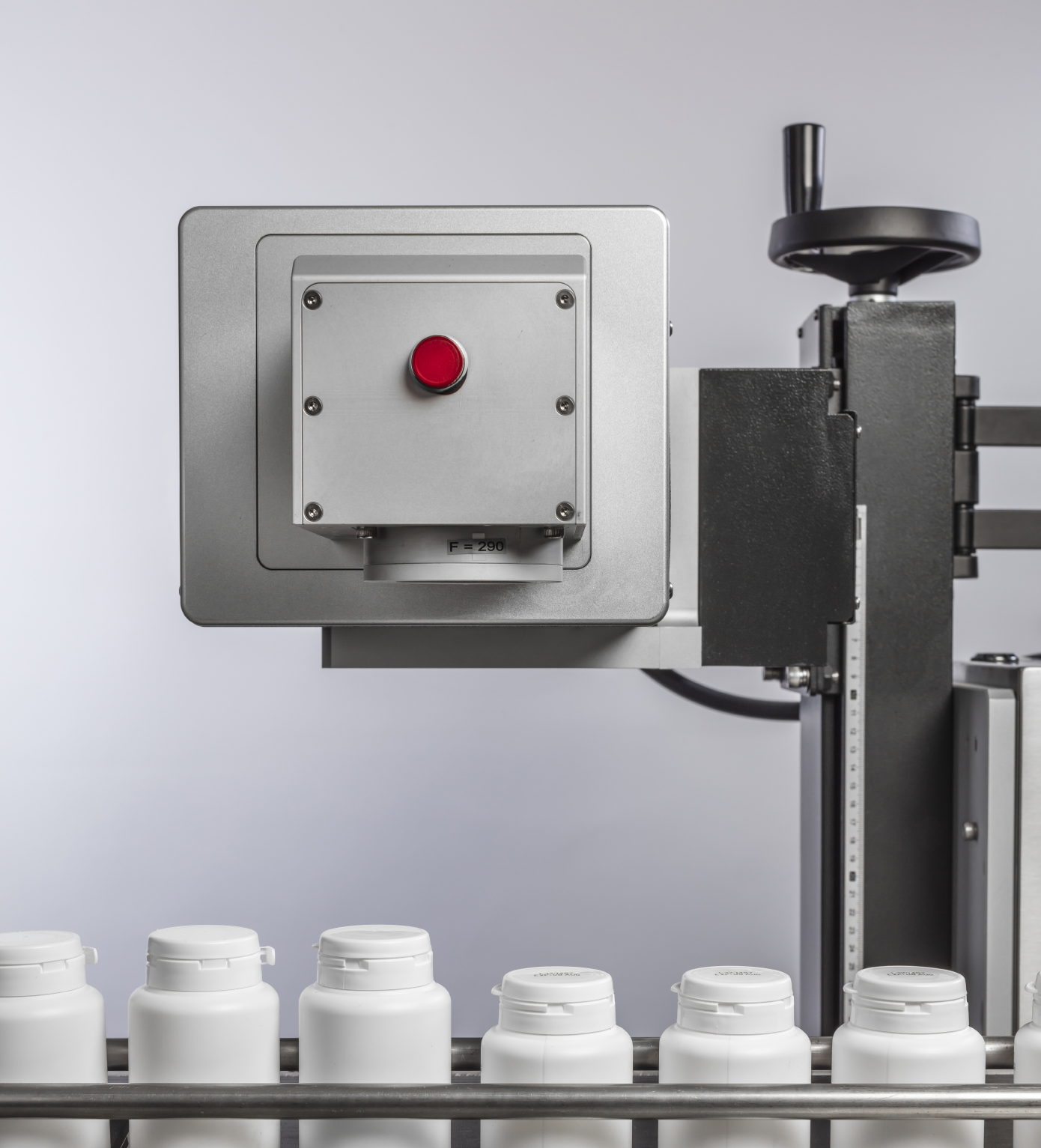

Linx UVG5

Key benefits

Built to perform on your line.

Performance

Mark up to 2,000 characters per second for higher throughput
Minimal thermal stress vs CO₂ and fibre — less packaging damage
Smoother-edged, higher-contrast, highly readable codes

Integration & setup

Built-in Focus Shift — quick changeovers, no mechanical adjustment
Easy integration into existing or space-restricted lines
Laser extension and turning units for flexible mounting

Ease of use

User-friendly LinxVision interface for mistake-free operation
Built-in Pilot Laser ensures products are marked in the right place
Built-in Focus Finder simplifies marking-distance setup

Technical specifications

The numbers that matter.

UV laser coder · 355 nm wavelength
Maximum laser output – 4 W
Line speed – up to 600 m/min (application dependent)
Maximum marking speed – 1,200 m/min
Marking area – up to 259×393 mm
Print rotation – 0–360°
Codes – text, serials, 1D/2D barcodes, QR (incl. GS1), Data Matrix, logos
IP54 standard (IP65 option)

Linx UVG5

Applications

Where it fits best.

Mono-recyclable films Rigid plastics (HDPE/LDPE/PP) Glass Nutraceuticals Personal care Food & pet food Perfume Wire & cable

Related products

Compare the range.

Linx CSL30

Linx CSL30

View full details

Linx CSL60

Linx CSL60

View full details

Want the Linx UVG5 on your line?

Send us your product and substrate — we'll quote it, configure it and run a sample mark.

Request a quote WhatsApp
